CESAB S200
Delivery time:
Available upon request or check stockWarranty:
at least 12 monthsService department:
24/7 optionalWant to know more:
Contact us

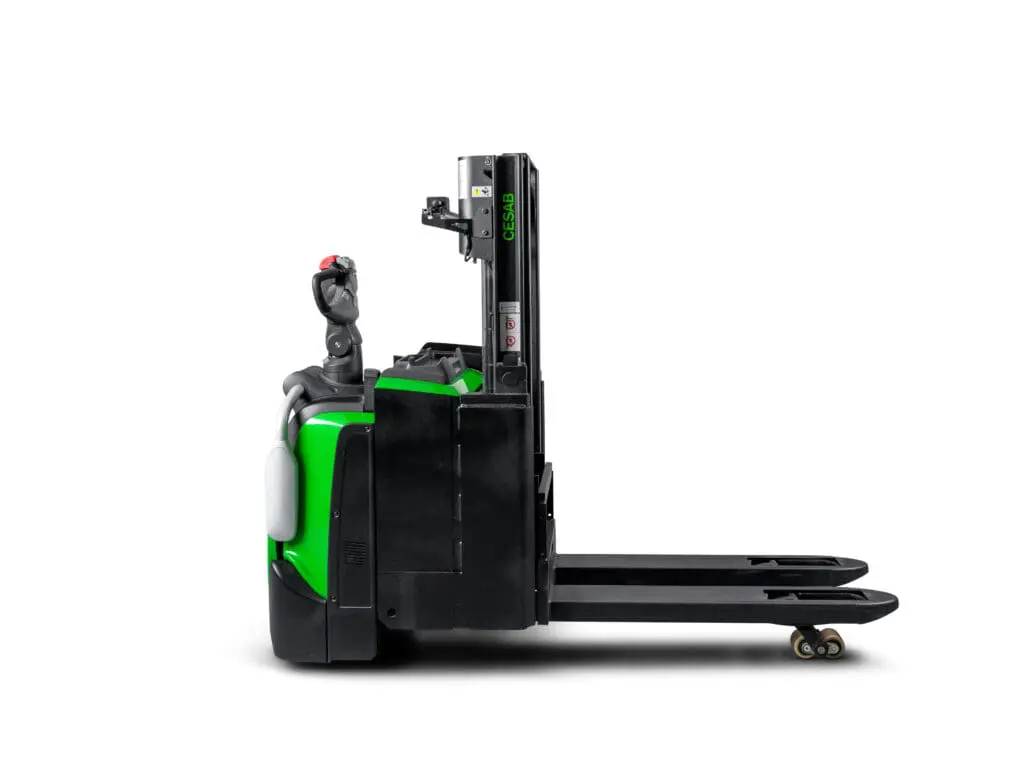

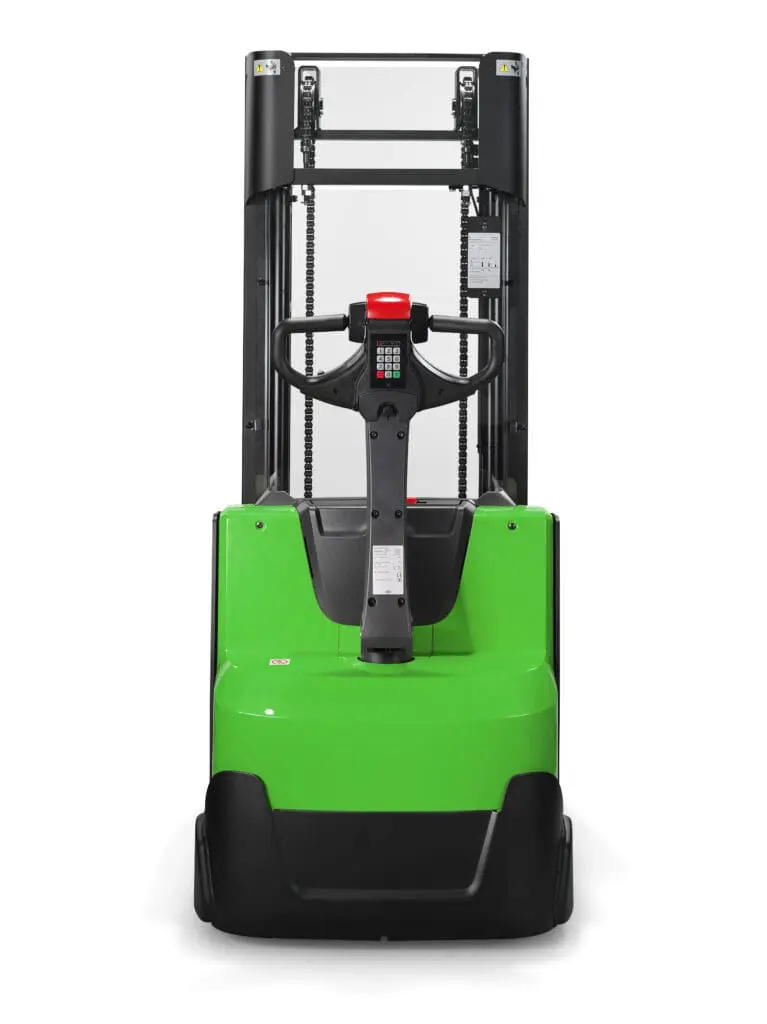

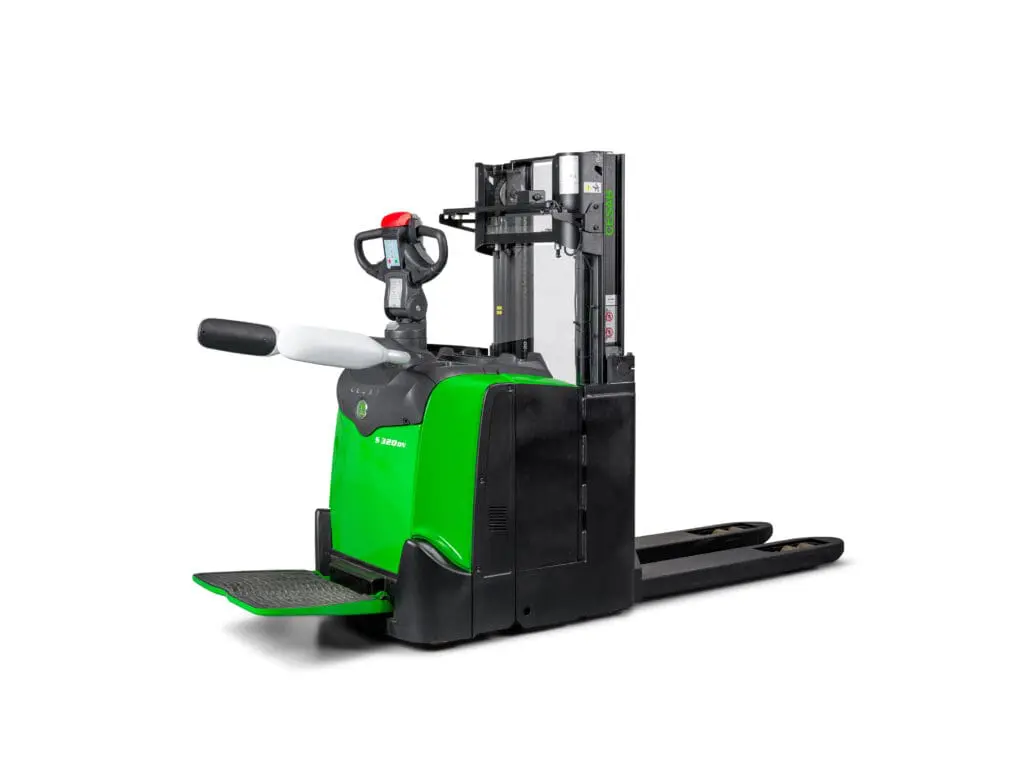

The CESAB S200 stacker is a versatile electric solution for stacking and moving pallets in warehouses, distribution centers and production environments. Its compact design and central tiller arm allow you to work accurately and safely, even in narrow aisles.
With lift capacities from 800 to 2,000 kg and lift heights up to approximately 5,400 mm, the S200 series offers a flexible solution for a variety of applications, from light duty to intensive stacking.
The combination of maneuverability, stability and ease of use makes this stacker suitable for daily use where efficiency is key.
CESAB S200 Series
✓ Lift capacity 800 - 2,000 kg
✓ Electric stacker (pedestrian / optional platform)
✓ Lift heights up to approx. 5.400 mm
✓ Compact design for narrow spaces
✓ AC drive for smooth performance
✓ CESAB Drive Control system
✓ Creep Speed function for precise maneuvering
✓ 5-point chassis for added stability
✓ PIN code access and adjustable travel profiles
✓ Optional with initial lift or straddle legs
| Product series | CESAB S200 | CESAB S200 | CESAB S200 | CESAB S200 | CESAB S200 | CESAB S200 | CESAB P200 | CESAB S200 | CESAB S200 | CESAB S200 | CESAB S200 | CESAB S200 | CESAB S200 | CESAB S200 | CESAB S200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | CESAB S210 | CESAB S212 | CESAB S214 | CESAB S208L | CESAB S212L | CESAB S214L | CESAB S220D | CESAB S212S | CESAB S215 | CESAB S216 | CESAB S220 | CESAB S215L | CESAB S216L | CESAB S220L | CESAB S214S |
| Lifting capacity | 1000 kg | 1200 kg | 1400 kg | 800 kg | 1200 kg | 1400 kg | 1000 kg | 1200 kg | 1450 kg | 1600 kg | 2000 kg | 1450 kg | 1600 kg | 2000 kg | 1400 kg |
| Lift height | 3300 mm | 3300 mm | 3255 mm | 1580 mm | 3300 mm | 3255 mm | 2100 mm | 2655 mm | 4150 mm | 4150 mm | 4050 mm | 4150 mm | 4150 mm | 4050 mm | 4100 mm |
| Mast type | Simplex/Duplex | Simplex/Duplex/Triplex | Duplex/Triplex | Mono | Simplex/Duplex/Triplex | Duplex/Triplex | Duplex | Simplex/Duplex/Triplex | Duplex/Triplex | Duplex/Triplex | Duplex/Triplex | Duplex/Triplex | Duplex/Triplex | Duplex/Triplex | Duplex/Triplex |
| Battery type | Lead Acid | Lead Acid | Lead Acid | Lead Acid | Lead Acid | Lead Acid | Lead Acid | Lead Acid | Lead Acid | Lead Acid | Lead Acid | Lead Acid | Lead Acid | Lead Acid | Lead Acid |
| Battery type in V | 24V | 24V | 24V | 24V | 24V | 24V | 24V76 | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V |
| Fork length | 1150 mm | 1150 mm | 1150 mm | 1150 mm | 1150 mm | 1150 mm | 1150 mm | 1150 mm | 1150 mm | 1150 mm | 1150 mm | 1150 mm | 1150 mm | 1150 mm | 1150 mm |
| Travel speed | 6 km/h | 6 km/h | 6 km/h | 6 km/h | 6 km/h | 6 km/h | 6 km/h | 6 km/h | 6 km/h | 6 km/h | 6 km/h | 6 km/h | 6 km/h | 6 km/h | 6 km/h |
