CESAB R100
Delivery time:
Available upon request or check stockWarranty:
at least 12 monthsService department:
24/7 optionalWant to know more:
Contact us

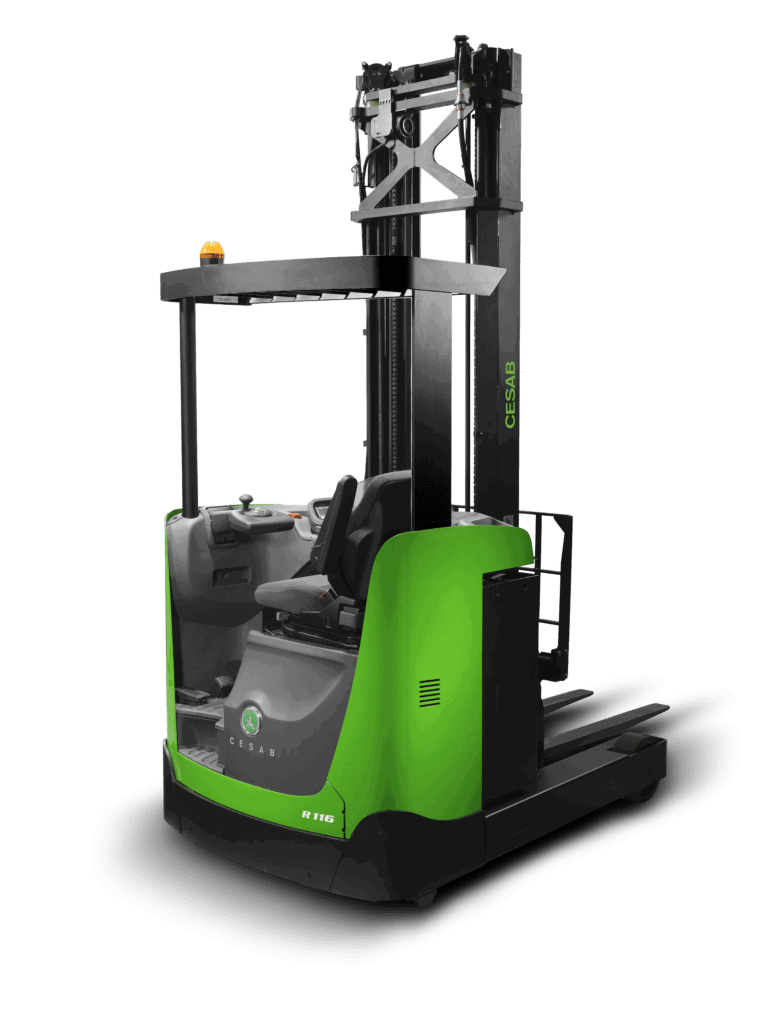

The CESAB R100 reach truck is an efficient solution for storing and moving pallets at higher heights in warehouses and distribution centers. Thanks to the reach mechanism you work easily in narrow aisles and make optimal use of the available storage space.
With a lifting capacity of 1,200 to 1,600 kg and lift heights up to approximately 8,500 mm, the R100 series is suitable for a variety of warehouse applications. The combination of compact construction, stable mast and precise operation ensures safe and controlled working at height.
The ergonomic cab and adjustable controls make this reach truck comfortable for daily use, while the electric drive ensures efficient and low-maintenance performance.
CESAB R100 Series
✓ Lift capacity 1,200 - 1,600 kg
✓ Reach truck (seated model)
✓ Lift heights up to approx. 8,500 mm
✓ Travel speed up to approx. 10 km/h
✓ AC drive for smooth performance
✓ Choice of 180° or 360° steering

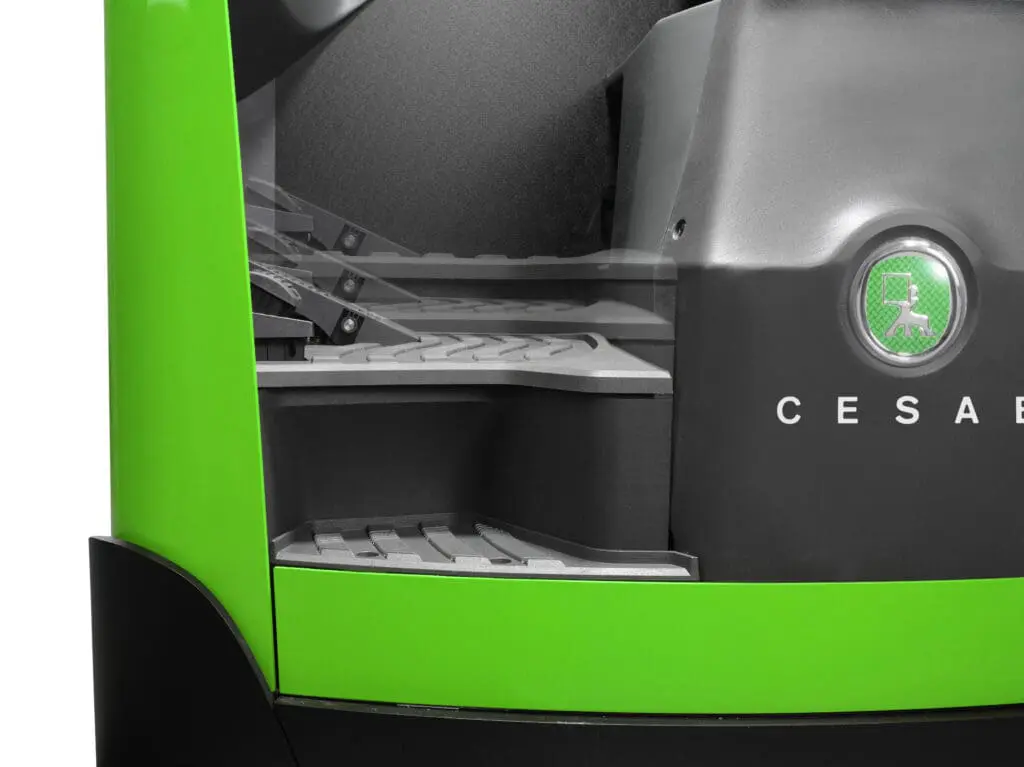

✓ Ergonomic cabin with adjustable controls
✓ PIN code access and adjustable travel profiles
✓ Excellent all-round visibility for safe working
✓ Suitable for narrow aisles
| Product series | CESAB R100 | CESAB R100 | CESAB R100 |
|---|---|---|---|
| Model | CESAB R112 | CESAB R114 | CESAB R116 |
| Lifting capacity | 1200 kg | 1400 kg | 1600 kg |
| Lift height | 4800 mm | 4800 mm | 4800 mm |
| Mast type | Duplex/Triplex | Duplex/Triplex | Duplex/Triplex |
| Battery type | Lead Acid | Lead Acid | Lead Acid |
| Battery type in V | 48V | 48V | 48V |
| Including side shift | - | - | |
| Fork length | 1150 mm | 1150 mm | 1150 mm |
| Travel speed | 10 km/h | 10 km/h | 10 km/h |
